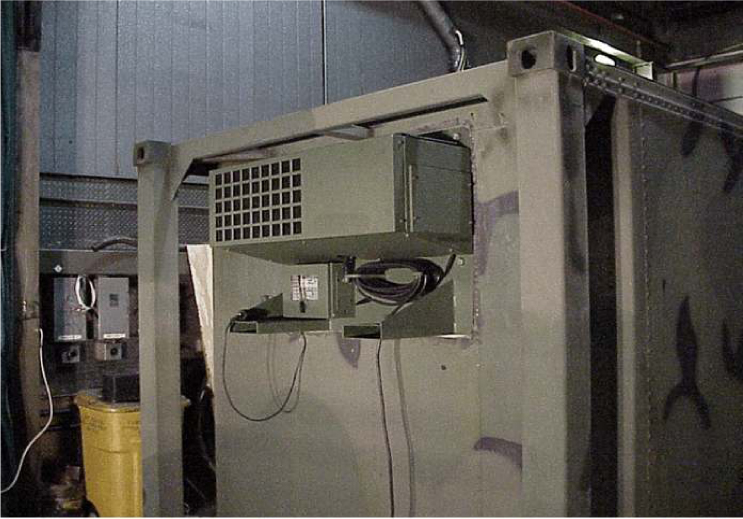

Small Field Refrigeration Unit
Part Number: SB405
NSN: 4110015929689
For use with Tricon sized refrigerated container
Technical ManualIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote

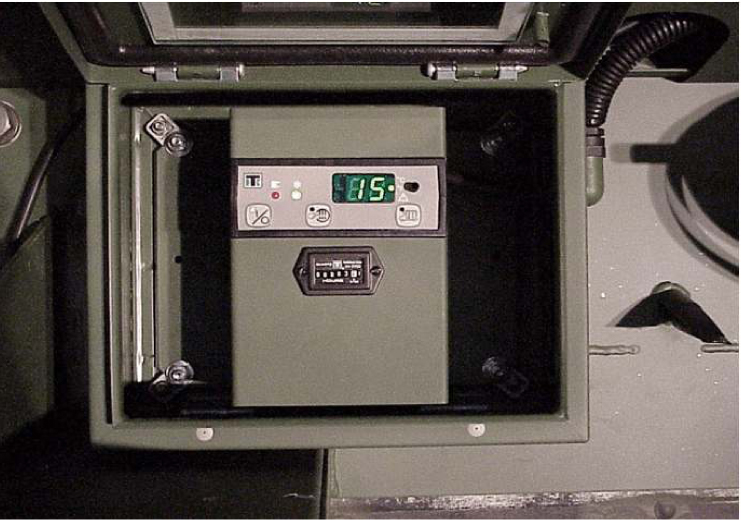

- M13 Controller
- Digital Thermometer
- Electronic Thermostat, adjustable from -26 F to 86 F
- Defrost Timer
- Hot Gas Defrost
- Defrost Termination Switch
- Manual Defrost Switch
- Receiver Tank with Outlet Service Valve
- 2HP Semihermetic Compressor 50/60 Hz
- Compressor Thermal Protection
- Hourmeter
- 100W Lamp Plug
- Draining Heater Wire Resistances
- Electric Resistant Heaters (750 W)
- Operations Manual and Parts List Manual
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | ||||||||
| Metric | ||||||||
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 6,880 | 60,320 | 67,200 | 944 cu. ft. |
| Kgs | 3,120 | 27,360 | 30,480 | 26.7 cu. m. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
