Tricon Refrigerated ISO Container - Small Field Refrigerated System (SFRS)
Part Number: SB531.0.SFRS
Type: ITricon Refrigerated ISO Container - Small Field Refrigerated System (SFRS)
SB531.0.SFRS BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Smooth steel exterior sides and roof
- Single swing door with grip handle and emergency hardware
- Automatic pressure relief valve, (1) each for air transport

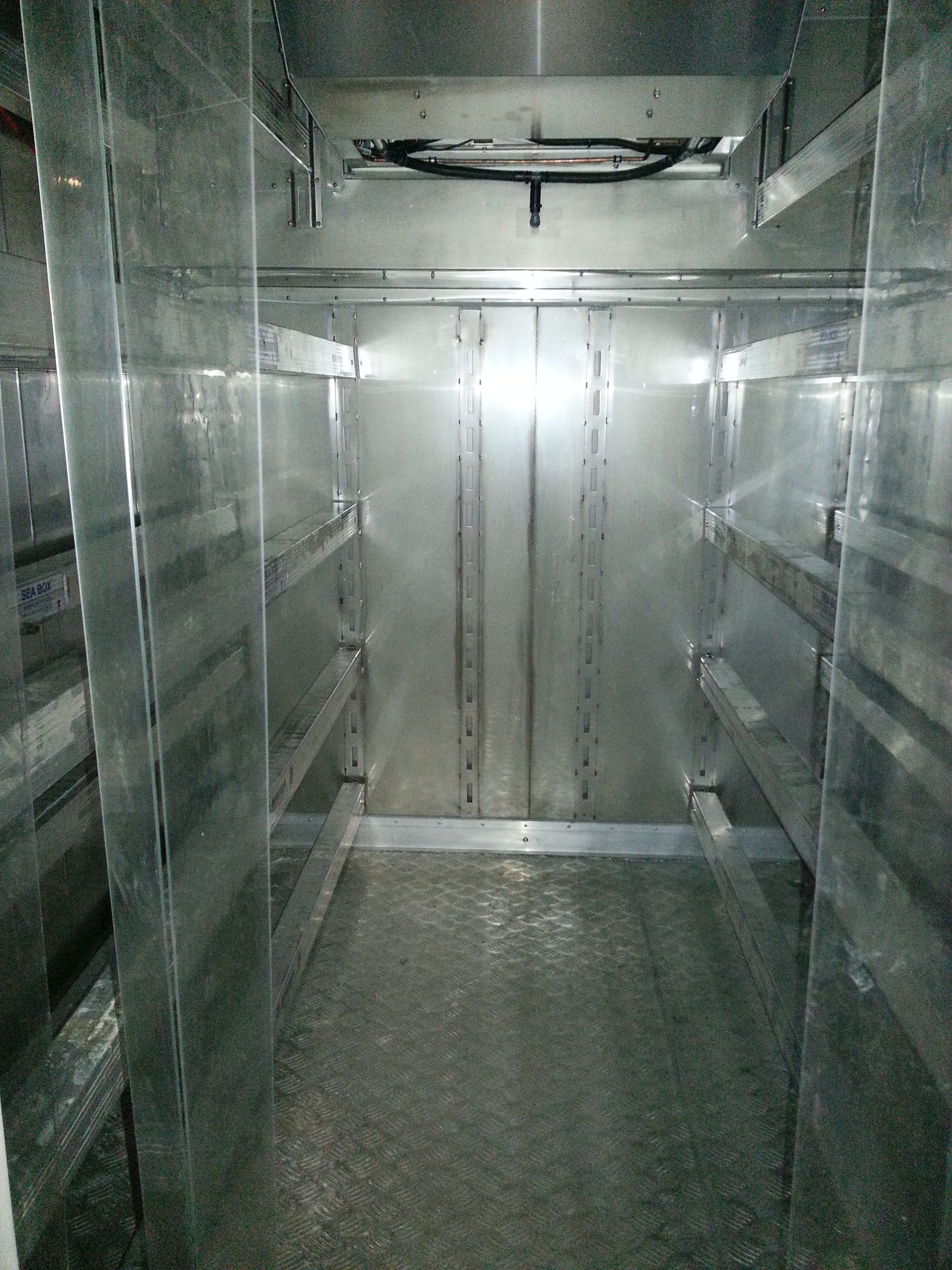

- Stainless Steel interior lining as per NSF Standards
- Heavy duty tread plate aluminum floor
- Four-way fork lift pockets
- Thermo King VM405 PBBD2 Refrigeration Unit, 208/230 VAC, 3 phase, 50/60 Hz power
- Internal lighting, LED on ceiling with switch
- Floor drain, (4) each, 2 with 90 deg. pipe drains + 2 with solid closeable caps
- Air curtains in sliding track across door
- Five (5) folding steps/hand hold for roof access, plus (1) folding handle on the roof
- Custom data plates
- Vertical E-Track in curb side wall, (4) each, designed for maximum shelf width
- Horizontal E-Track on front wall, (1) each with (4) articulated rings
- Horizontal E-Track on rear wall, (1) each with (4) articulated rings
- Connecting couplers, (3) per Tricon
- Connecting coupler storage bracket, (1) each holds (3) connectors installed on center line of interior road side wall
- Technical Manual Holder, interior size: 12” x 9” x 1.5” on interior door
- Exterior LED Flood Light, 25’ cord with special corner fitting brackets
- Vertical E-Track in road side wall, (4) each, designed for maximum shelf width
- Clip-On Generator Set (run 3 Tricons at once)
- Spare parts kit to support 100 units
- Low Solar Absorption (LSA) coating
- Compatible with Tricon Refrigerated Containter System (TRCS) Shelf Kit SB531.0.TRCS.SK3 - 20 1/2” Wide
- Audible alarm sound during Refrigeration Unit failure
- Available in Green, Tan or White exterior color
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 6’ 5 1/2” | 5’ 9 9/32” | 8’ 0” | 6’ 11 11/16” | 8’ 0” | 7’ 1/8” | 6’ 3” | 2’ 4” |
| Metric | 1,969 | 1,760 | 2,438 | 2,126 | 2,438 | 2,137 | 1,905 | 711 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 3,400 | 11,600 | 15,000 | 286 cu. ft./282 cu. ft. |
| Kgs | 1,543 | 5,261 | 6,804 | 8.10 cu. m. /8.0 cu. m. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
