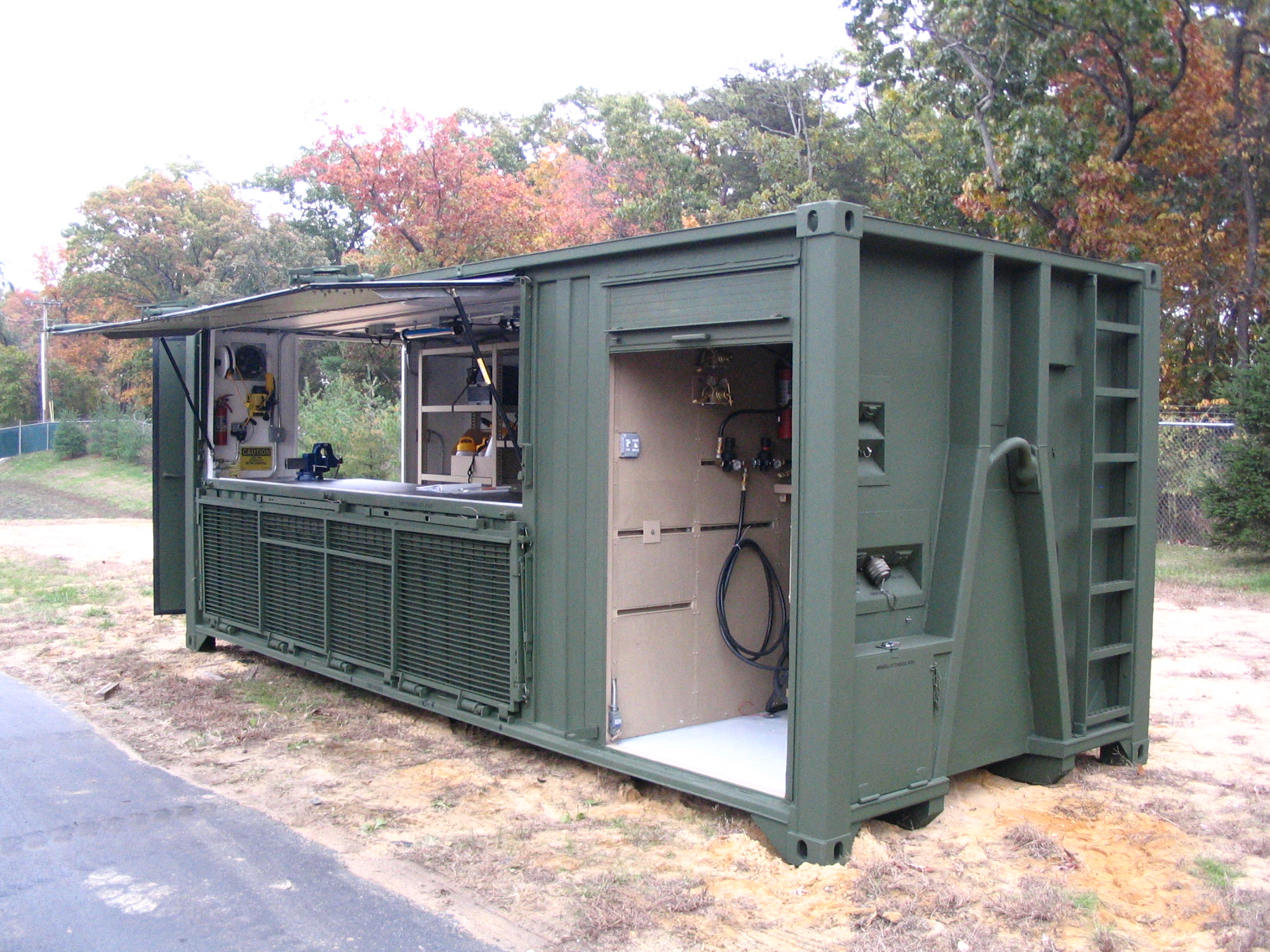

20’ x 8’ “Common 32” Containerized Shelter
Part Number: SB866.0.PLSC32
NSN: 8150-01-619-0885, 8150-01-619-0864
Type: ISelf contained workshop with generators, HVAC, air compressor, and cabinets. Double doors one end and one personnel door on side
SB866.0.PLSC32 BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Corrugated steel sides and roof
- Recessed A-frame and bail bar
- Roof access ladder with (2) roof handles
- 36” x 80” marine man door
- 43” full height roll-up door
- (1) each fold out work bench, 24” deep x 48” wide work surface at 36” from the ground with a capacity of 300lbs
- (4) full depth cabinets assemblies integrated into a single assembly 42”H x 115”L x 24”D
- Complete shelving assembly which will be 21.75” deep x 78.75”H x 162”W
- Each section of shelving shall have 38” usable width, a total of (18) adjustable shelves of which (8) panels are top and bottom sections and (1) panels are adjustable shelves with polyurethane coated 1/8” thick
- Shelving will be supplied with (14) adjustable cross bars and (28) ratchet style straps 700lb capacity
- (1) each 12” x 12” ventilation fan
- (8) D-rings recessed in floor, (2) rows of (4)
- (2) drains for water washout
- Stowage attachment for (2) rear wheel rollers
- Telephone connection
- LAN connection
- Ext. Gen (1) 120 VAC, single phase 60 Hz
- Compressor/generator rated at 120 V, 1 phase, 60 Hz, 30 amp
- Compressed air access ports
- Insulation foam board which is .50” +/- .0625 thick, with plastic interior lining
- Epicon zinc primer with water base top coat
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 19’ 10 1/2” | 19’ 1” | 8’ 0” | 6’ 8” | 8’ 0” | 7’ 8” | 6’ 8” | 3’ |
| Metric | 6,058 | 5,817 | 2,438 | 2,032 | 2,438 | 2,337 | 2,032 | 914 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 7,000 | 8,000 | 15,000 | 975.4 Cu. Ft. |
| Kgs | 3,175 | 3,628 | 6,803 | 27.6 Cu.M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
Related Products
20’ x 8’ ISO Container Workshop Double Doors on Both Ends & Double Side (SB863.0.WS)
Type III20’ x 8’ ISO Container Workshop... (SB863.0.WS)
Learn More Request A Quote

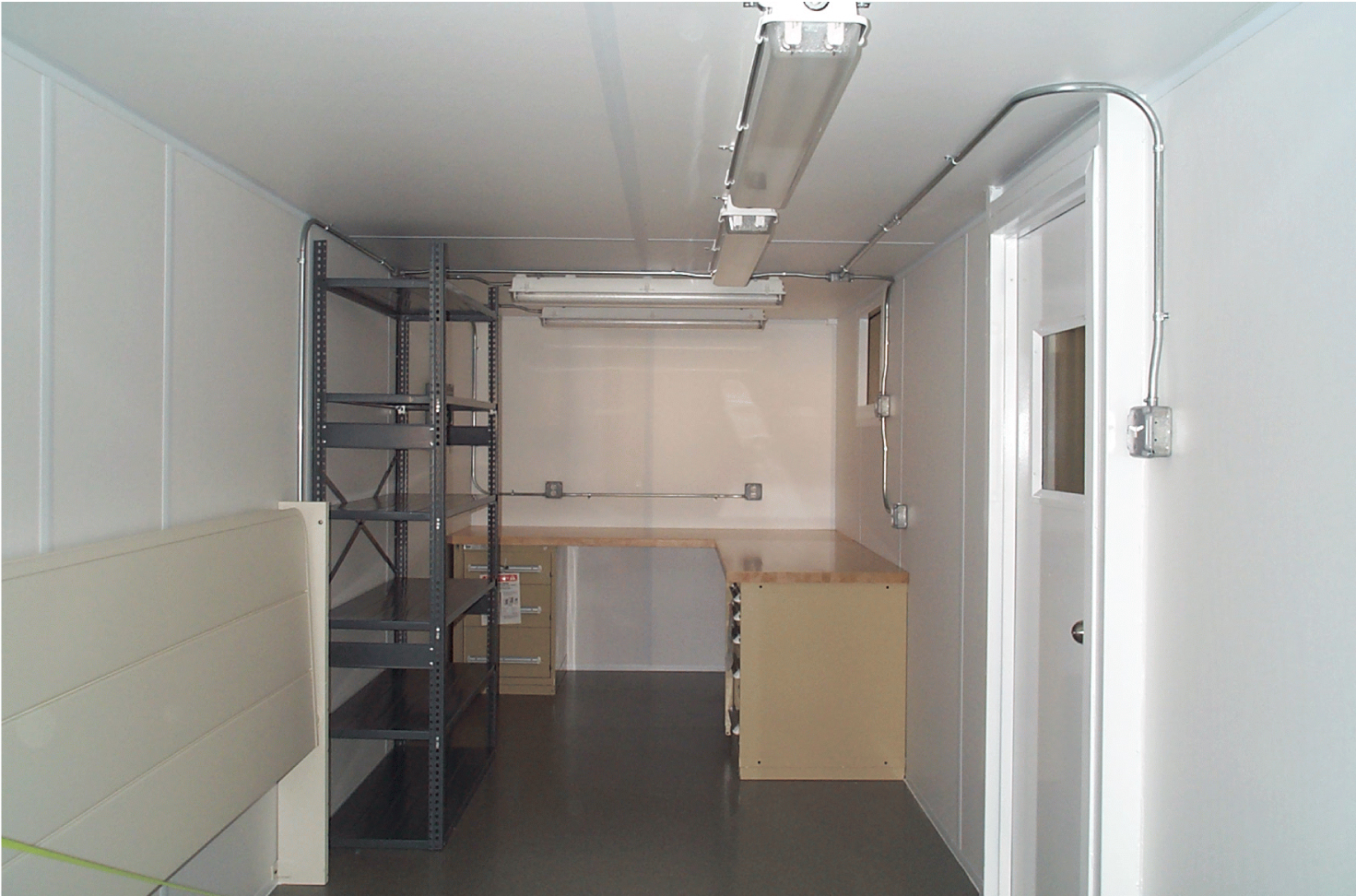

20’ ISO Containerized Shelter with Office Package (SB861.0.OP)
