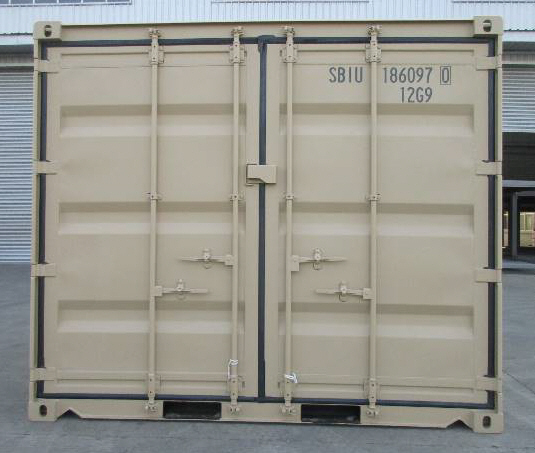

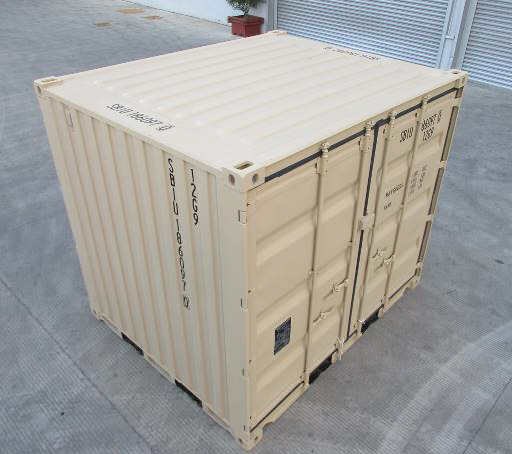

10’ x 8’6” Bicon Dry Freight Container with Double Doors on Both Sides
Part Number: SB844.6
NSN: 8145-01-587-2372
Type: II
SB844.6 BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Corrugated steel sides and roof

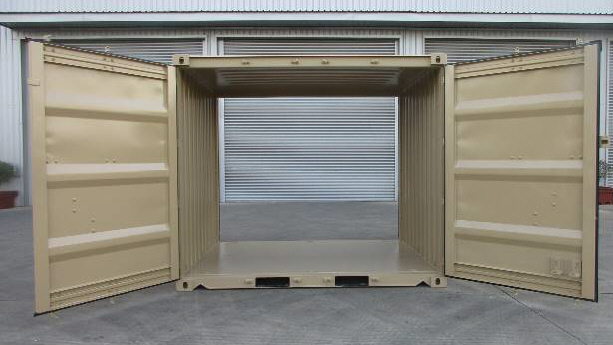

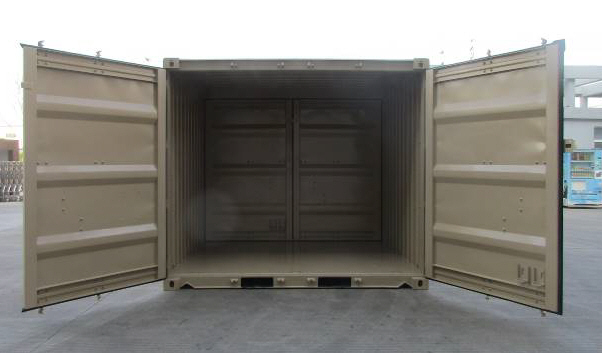

- 14 gauge locking steel double end swing doors
- Steel floor
- (6) Tie down steel lashing rings, 6,000 lbs. cap. each
- (4) way fork lift pockets
- Vents, (2) each
- (2) double side door (2) Bicon Containers coupled together to form (1) 20’ ISO module
- (2) double side door (2) Bicon Containers coupled together to form (1) 20’ ISO module
- Connecting couplers, (2) per Bicon
- Connecting coupler storage bracket, (1) each
- Manifest box, (2) each
- Heavy duty adjustable shelving brackets (4) sets
- Decking and shoring beams, (16) each
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 9’ 9 3/4” | 9’ 7 43/64” | 8’ 0” | 7’ 11 3/64” | 8’ 0” | 7’ 3 61/64” | 7’ 7 1/16” | 9’ 5 57/64” |
| Metric | 2,991 | 2,938 | 2,438 | 2,414 | 2,438 | 2,234 | 2,313 | 2,893 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 3,970 | 22,490 | 26,460 | 559 Cu. Ft. |
| Kgs | 1,800 | 10,200 | 12,000 | 15.84 Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
