Quadcon Dry Freight ISO Container (6’10"H) with Roll-Up Door on One Side and Cargo Doors on One Side
Part Number: SB812.RD
Type: IIOverhead Roll-Up Door on One Side and Double Cargo Doors on Other Side
SB812.RD BrochureIf your storage or transportation needs are more unique, SEA BOX can create custom sized containers to accommodate any need.
Request a Quote
- Corrugated steel sides, and roof

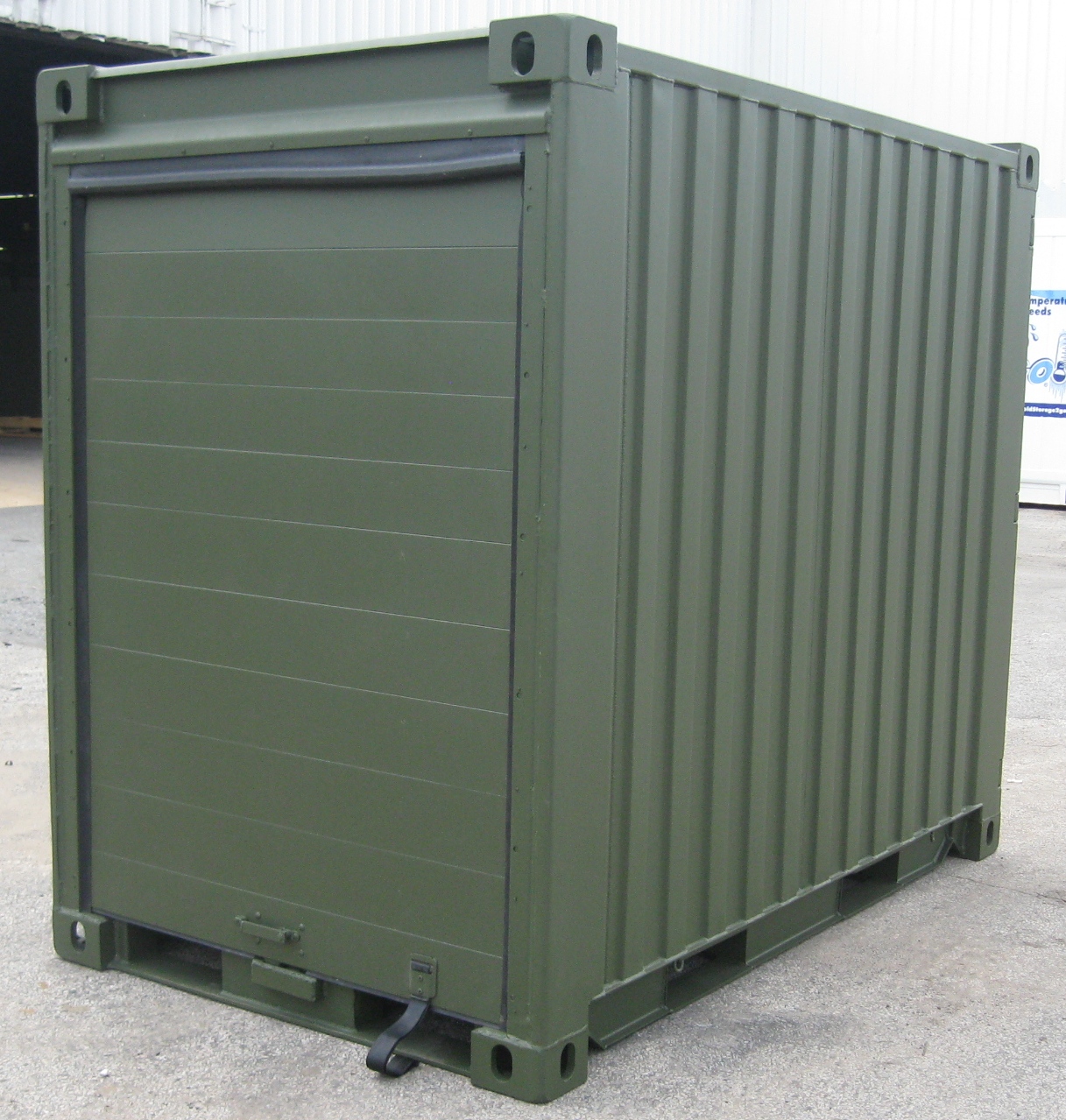

- Heavy-duty, aluminum roll up door on one side, ideal for on-board ship access
- Roll back door panels have no welded joints to crack or corrode
- Roll-up door features continuous hinge panel joints designed to provide a watertight seal for maximum cargo protection
- Belted rubber side seals on vertical track for additional weatherproofing

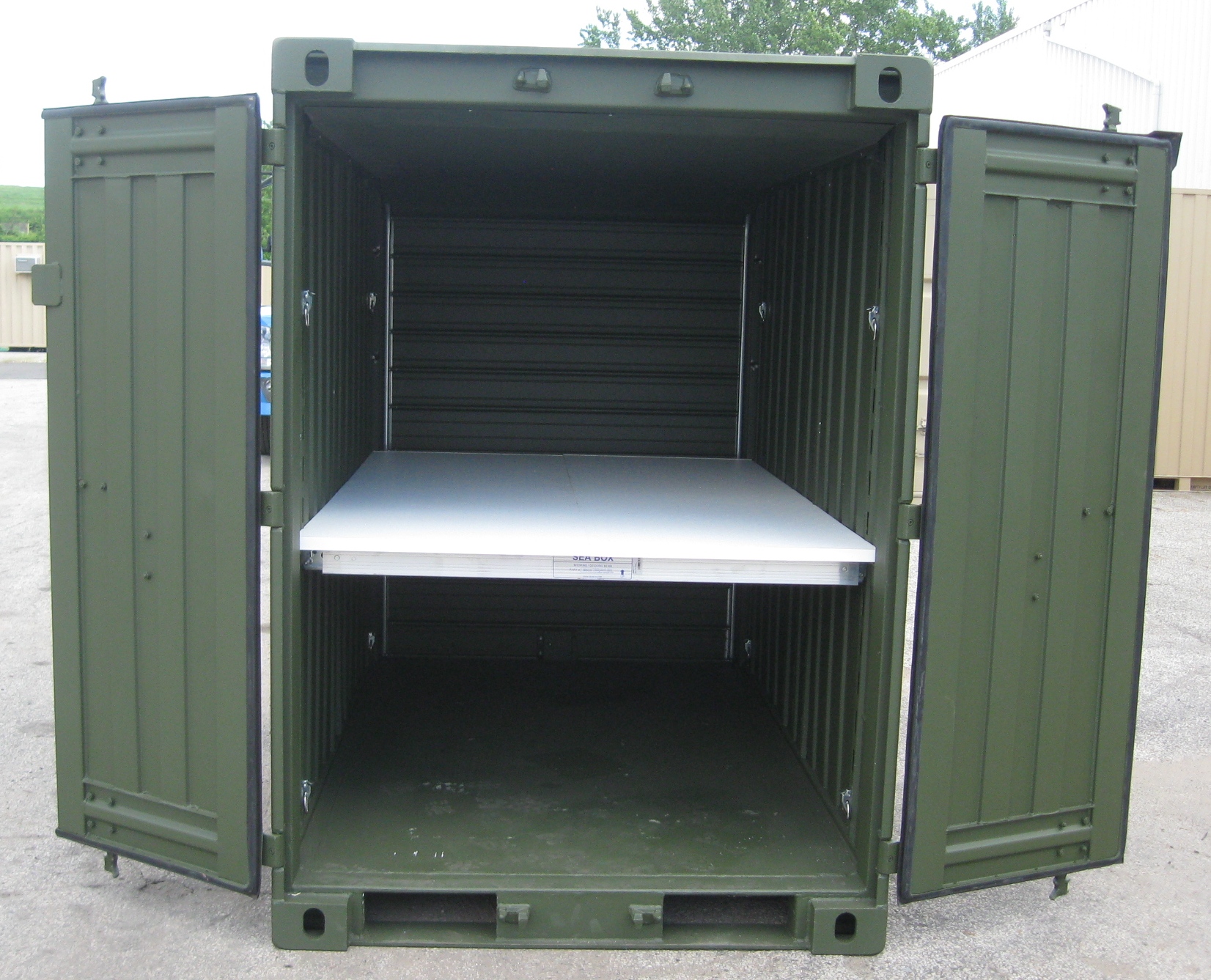

- Double Cargo doors on one side
- (8) Total wall tie down steel lashing bars, 2,000 lbs. cap., tested at 3,000 lbs. each
- 8 Columns Vertical E-Track (4 per side)
- Sheet metal ceiling cover plate
- Heavy duty steel floor
- Four-way fork lift pockets
- CSC Tested and Certified
- Connecting couplers, (3) per Quadcon
- Connecting coupler storage bracket, (1) each
- Overhead Door Opening Dimensions - Height: 5'6 5/8"/1,692, Width: 4'1 21/32"/1,261
- Shelving
- Adaptor Plate for Removable Storage Modules
- Additional tie down features
ALL NEW CONTAINERS ARE MANUFACTURED TO THE LATEST ISO STANDARD
| Length | Height | Width | Door Opening | |||||
| Exterior | Interior | Exterior | Interior | Exterior | Interior | Height | Width | |
| Ft in | 4’ 9 3/8” | 4’ 7 25/32” | 6’ 10” | 5’ 10” | 8’ 0” | 7’ 7 21/64” | 5’ 11 3/16” | 4’ 5 5/8” |
| Metric | 5.83Cu. M. | 1,417 | 2,083 | 1,778 | 2,438 | 2,320 | 1,808 | 1,362 |
| TARE WEIGHT | PAYLOAD | GROSS WEIGHT | CUBIC CAPACITY | |
| Lbs | 2,200 | 4,410 | 6,610 | 206 Cu. Ft. |
| Kgs | 998 | 2,000 | 2,998 | 5.83Cu. M. |
ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS
